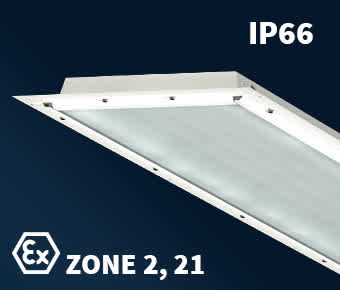

The dustproof recessed lighting fixture FILA-N-LED with splash water resistance is designed for areas with danger of explosion. They can be used mainly in paint cabins and paint workshops. The lighting fixture is approved by FTZÚ Ostrava - Radvanice (certificate type FTZÚ 20 ATEX 0075X a FTZÚ 20 ATEX 0077X).

EVG -- electronic 220-240V/50-60Hz AC, EVG -- electronic 220-240V, 0 Hz DC

Light source:
LED, 4000K, CRI +80, MacAdam3

Painted steel sheet RAL 9003

OP -- opal tempered safety glass

Painted steel sheet RAL 9003

Recessed ceiling mounting or surface mounting using a mounting frame

Screwed connecting terminal block, maximum cable cross section 2.5 mm2

Standard equipment:
2 pcs EX M20 cable glands for diameter of cable 7-12mm and 3 pcs EX M20 sealing plug

Calculated life time of LED modules:
L80B10 ta35 -- 70 000 h
L70B10 ta35 -- 100 000 h

On request:
 -- dimmable electronic ballast (DALI)
2.7K-6.5K- colour temperature
EM-1.5h/3h - non-maintained emergency lighting
MULTI-1.5h/3h - maintained emergency lighting
1/3 F- single-phase or three phase through wiring connection, maximum diameter of wires 2.5mm2
RAL - other colour scale
NANO - lighting fixtures can be protected by special nano-layer (hydrophobic, oleophobic or antibacterial protection)
NEREZ- housing produced from stainless steel AISI 304 or AISI 316 (in case of STAINLESS STEEL version its declared for ambient temperature decreased about 5-10°C)
SURFACE VERTICAL - surface mounted, bevelled vertical wall
SURFACE HORIZONTAL - surface mounted, bevelled horizontal wall
CORNER - corner installation
DIAGONAL - installation under angle

FILA-N-LED zone 2,21
EX II 3G Ex nR IIC T6 Gc
EX 2D Ex tb op is IIIC T70°C Db

FILA-N-LED zone 2, 22
EX II 3G Ex nR IIC T6 Gc
EX 3D Ex tc IIIC T70°C Dc
